KW 6-160 HD $839Plus $99 shipping
in US and Canada
CTR6-160 Auto Controller
Temporary Price Reduced
$299 Plus $30 shipping US and Canada
Shorty III works 6m thru 160m
$719 plus $69 shipping
CTR6-160 Auto Controller Demo
KW 6-160 HD
please return to KJ7U.com after viewing video
Click on Shorty I and Shorty III at top or bottom of page
for more info and pictures of Shorty I and III.
kj7u@kj7u.com
503 869 1222 Text only please
600 watts PEP rated
Standard 6-160 $649 Plus $79 shipping in
US and Canada
Our company has been building quality antennas for ham radio since the year 2,000. Our antennas will tune to all the HF bands and 6 meters. From 1.8mhz to 54mhz.
Our insulators at the base of each antenna are made from UV resistant high impact Delrin or Acetal. They are also treated for extra UV resistance.

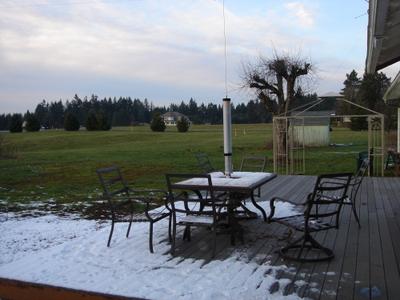

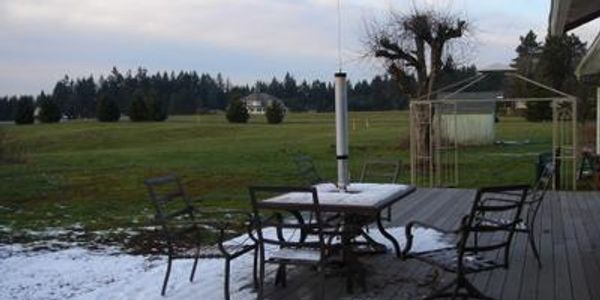

KW 6-160 HD mounted on aluminum table
. Ground rod should be used on all base installs.
All our antennas come with a manual controller, whip, mounting post and bolt, choke, HD models come also with feed point matching coil.
The push of one button either up or down starts the motor in the antenna moving and if, the transmitter is on, the motor will keep going until the swr bridge sees an improvement, it then slows the motor and starts recording the swr seen in the dip. When swr starts to go up after passing the best spot, the motor reverses and goes back to the best spot recorded. In other words it searches to see if swr will improve or not. When the coil is returned to the best spot, it is stopped with dynamic braking. If at anytime you want it to stop, stop transmitting. The motor can also be run up or down manually when wanted.
The controller has adjustable automatic current limiting. In case the coil hits a end of travel stop or other high resistance, the motor will stop.
The CTR6-160 Auto Controller will work with any screwdriver antenna with or without counter switch/magnet switch. It only requires connection to the 2 motor wires. It has a SWR bridge built in and checks the swr as it tunes to resonance. It will work with any HF radio transmitter. It comes with a short coax jumper to connect to the transmitter. It also comes with a choke for the motor wires.
